Paper Machine Parameters
Grade |
Printing Paper & Copy Paper |
Basis weight |
40-120g/m2 |
Trim width |
2640mm-5600mm |
Working speed |
250m/min |
01

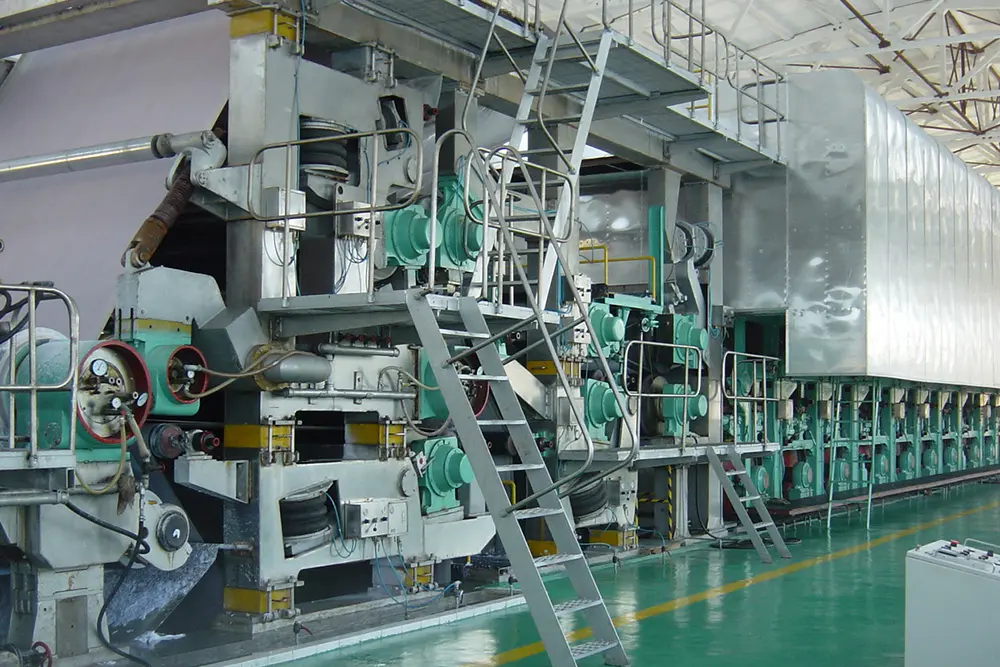

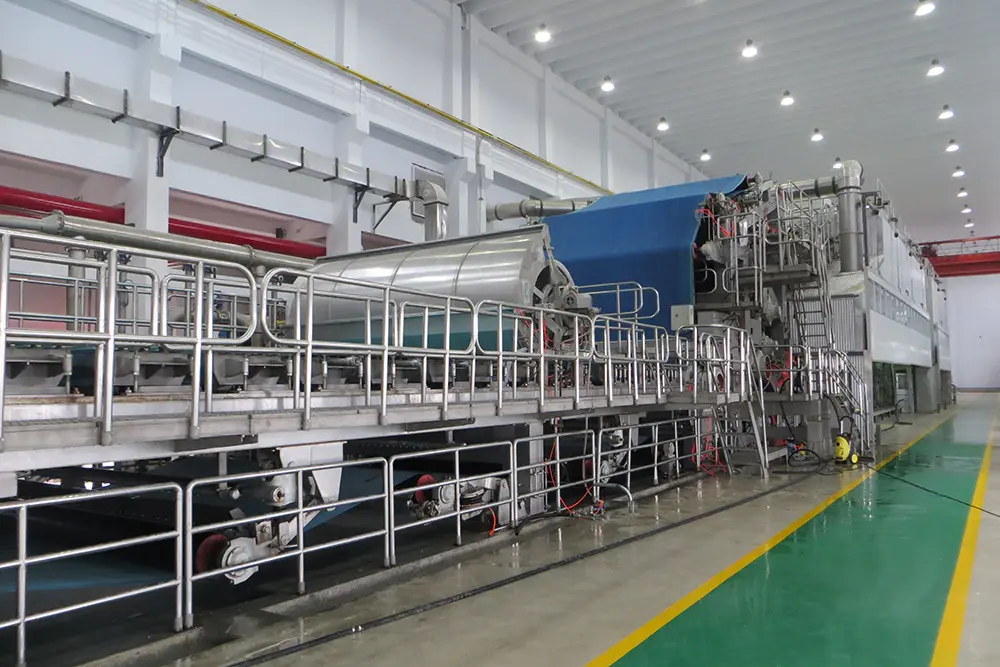

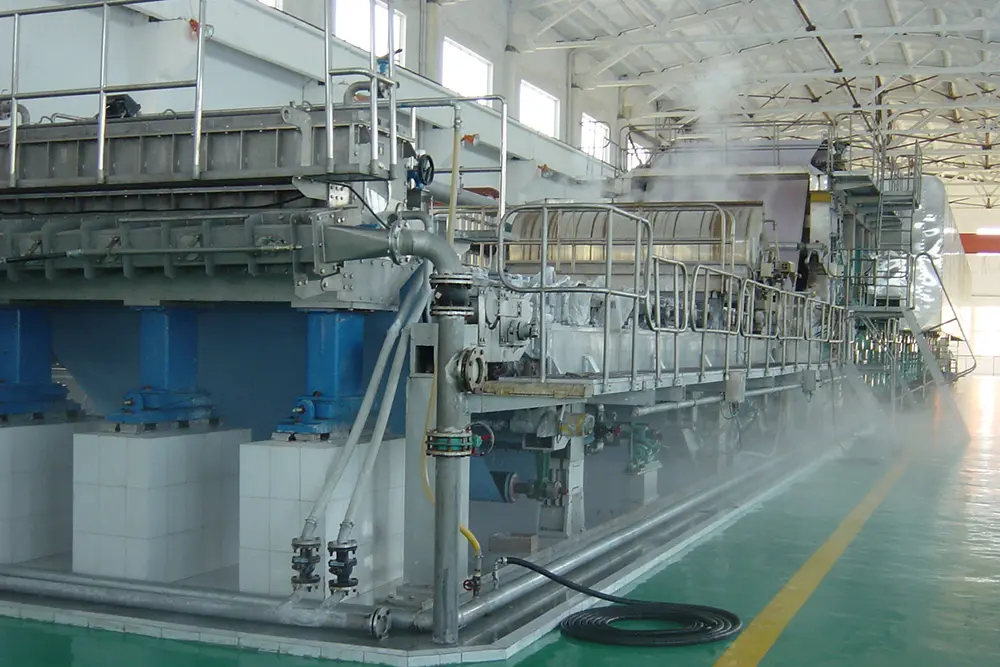

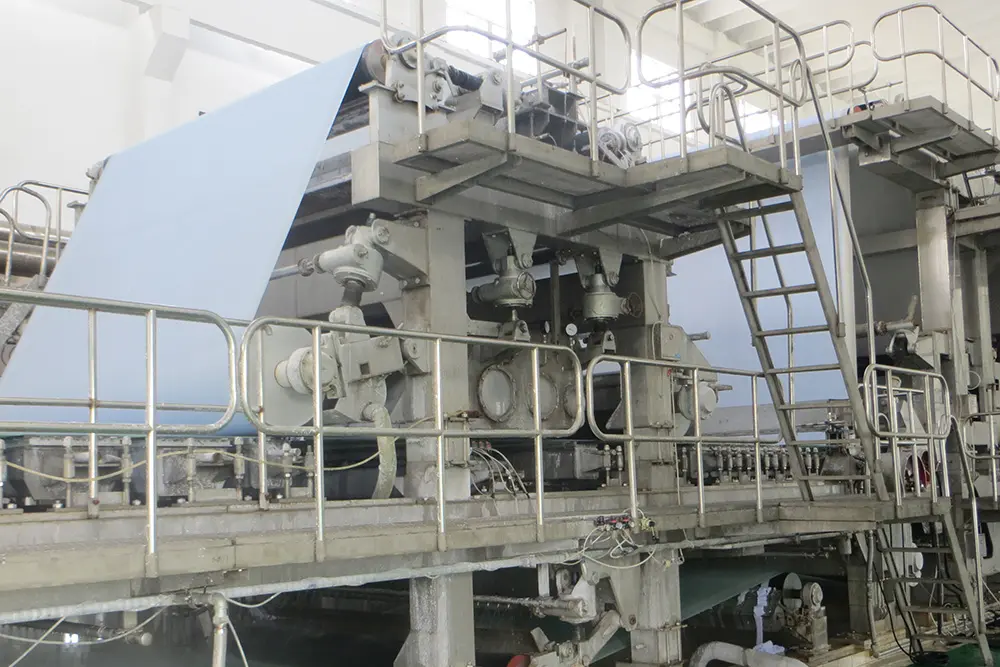

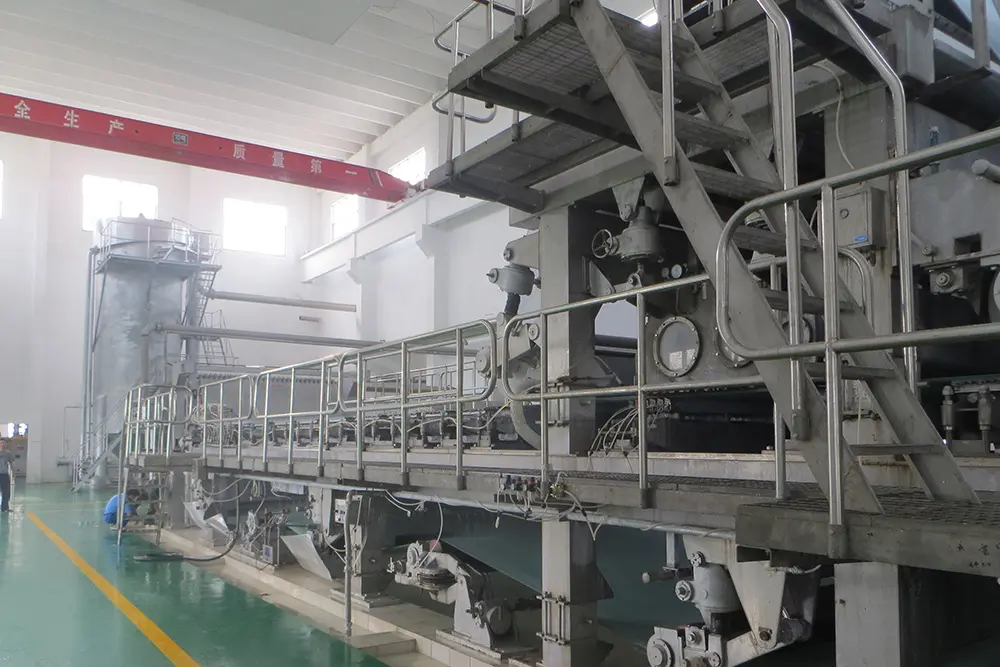

Efficient Paper Making Machine for Printing Paper and Copy Paper
description1
Requirements for water, electricity, gas, and steam
1. Power source parameters:
● Low voltage: AC380V/220V
● Frequency: 50Hz ± 1%
2. Compressed air for operation:
● Medium pressure (gas source): 0.6-0.7Mpa
● Maximum temperature: 35 ° C
● Quality: needs to be filtered
● Oil content: not more than 0.1g/Nm3
● Working pressure: 0.6Mpa
3. Compressed air for instruments:
● Medium pressure: 0.5-0.6Mpa
● Maximum temperature: 35 ° C
● Quality: filtration, oil removal, water removal
● Working pressure: 0.5Mpa
4. Clear water:
● Requirements: Pure, colorless, sand removal, pH value close to neutral
● Pressure: two types: 2.5Mpa and 1.2Mpa
Paper machine equipment process
Air Cushion Headbox - fourdrinier - suction pick-up - 4 rolls 3 nips - straight pressure - φ1500 pick-up cylinder 1 piece - Φ1500 Dryer 16 pieces(4+6+6) -Sizing Machine - Φ1500 Dryer 10 pieces(6+4)- 4 rolls soft calender - B/M scanner - Horizontal pope reel.
Raw Material
Use Wheat Straw pulp, Rice Straw, Waste Books Paper, Wood Chips, Waste Paper, Bagasse, Wood pulp board, waste paper to produce Kraft paper, test liner paper, corrugated paper, fluting paper, cardboard paper.
Our Advantage
China Leading Paper Making and Processing Technology
Super High Quality
Competitive Price
Best service in overseas
Fast Delivery
Ten Years' Export Experience
Excellent Sale and After-sale Service
OEM Available
FAQ
-
Q: Are you a factory or a trading company?
Shandong Haitian Paper Machinery Co.,Ltd. is a professional factory of culture paper machine, cardboard paper machine, kraft paper machine and specific paper machine. -
