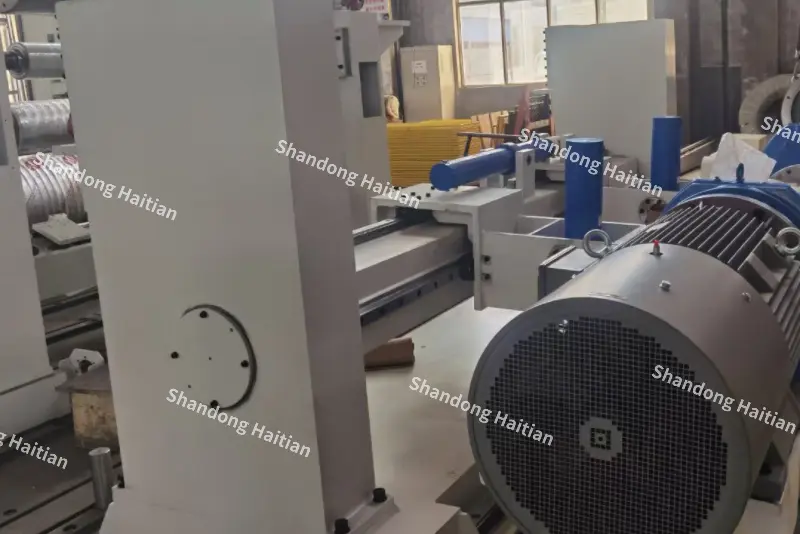

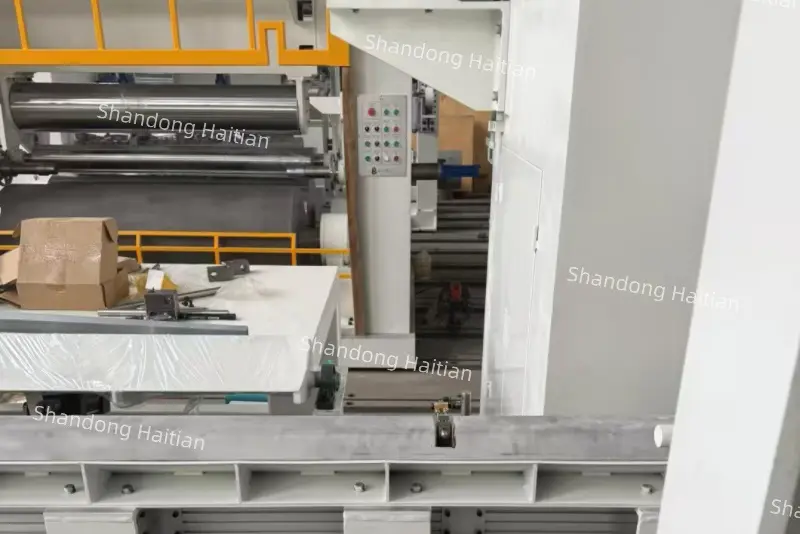

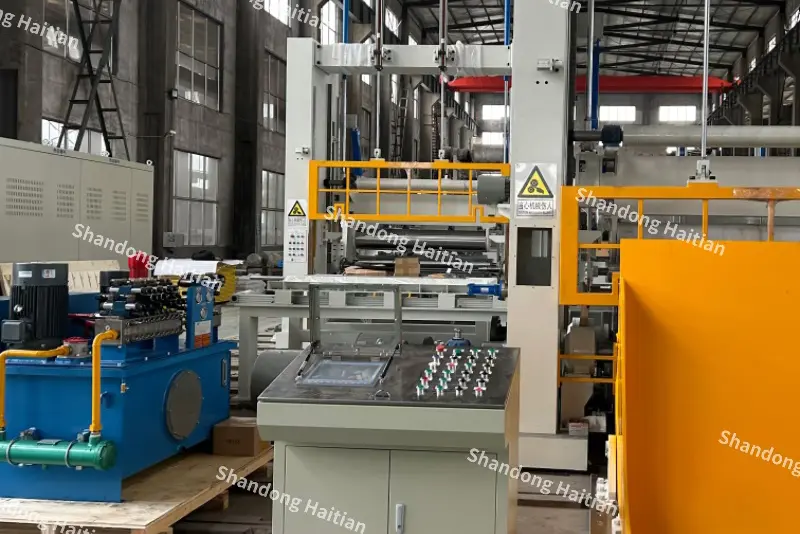

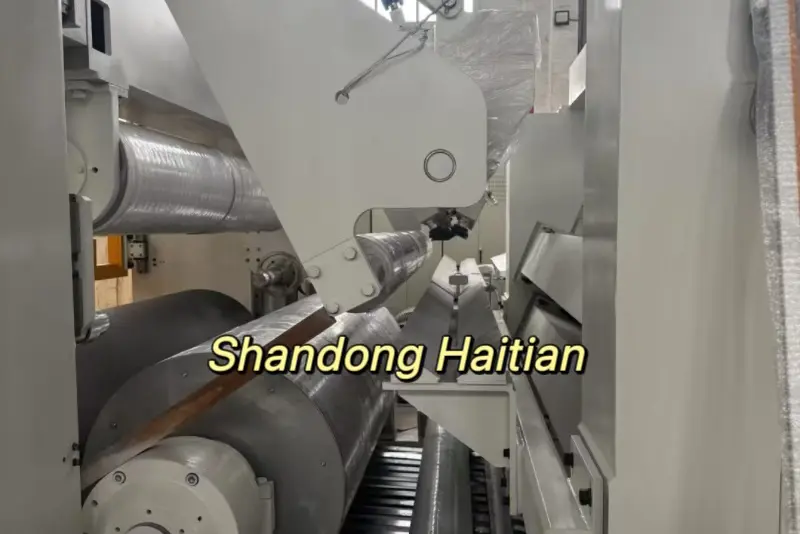

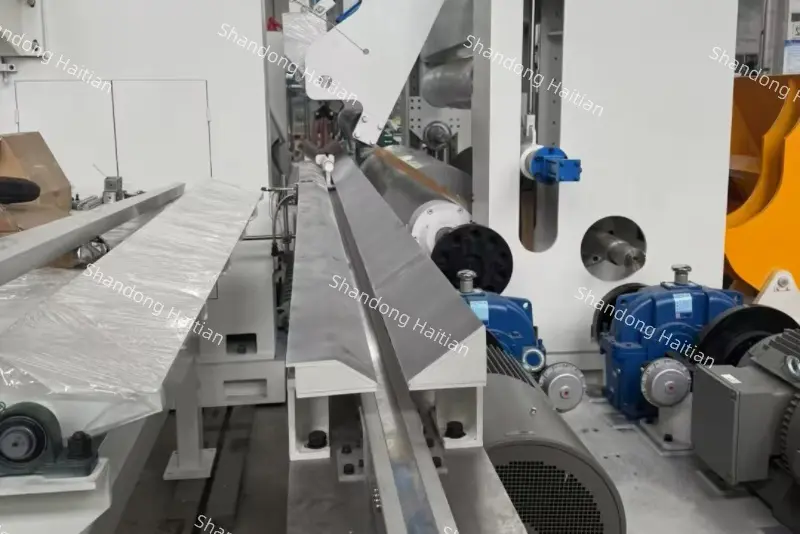

Kraft Paper Slitting Cutting Rewinder for Paper Making Machine

The slitting and rewinding machine is used to slit and rewind materials from 50GSM to 800GSM in thickness, such as various paper, polypropylene, polyethylene, lamination material, and monolayer aluminum foil so on. It has features of photocell tracing system, (hydraulic rectification system is available), automatic loading system, precision and high speed etc.

    description1

    The function of rewinder

    High-speed rewinders bring efficiency and precision to the tissue industry, enabling faster production cycles and increased output. These machines handle high volumes with consistent quality, ensuring uniform rolls and reducing waste.

    By minimizing downtime through quick roll changes and enhanced automation, high-speed rewinders improve operational efficiency and reduce labor costs. Additionally, they offer flexibility in roll size and format, meeting diverse customer demands. For tissue manufacturers, high-speed rewinders are essential for maximizing productivity and staying competitive in a dynamic market.

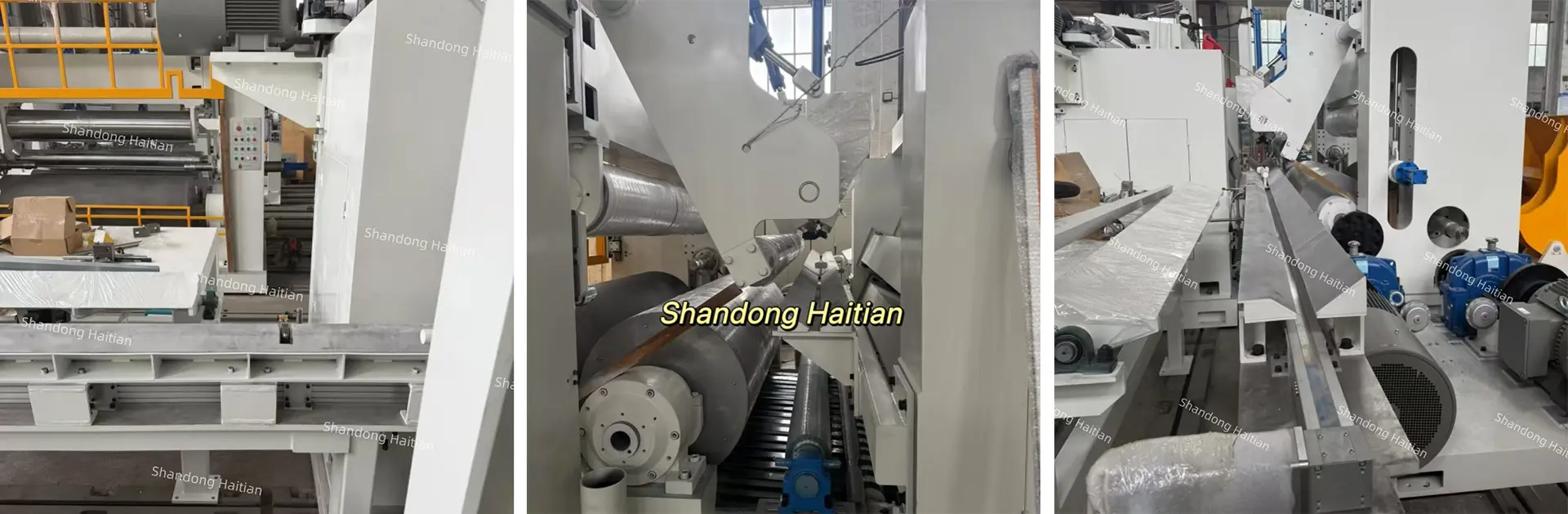

    The function of rewinder (1-ac)

    Main Technical Paramaters

    Max. Unwinding Width

    800-2800mm

    Max. Unwinding Diameter

    1500mm

    Max. Rewinding Diameter

    1500mm

    Max. Speed

    16-280m/min

    Main Motor Power

    3-15Kw

    Overall Dimension(L*W*H)

    2600*2200-3500*1600mm

    Weight

    2500-8000kg

    Main components

    The rewinder mainly consists of paper withdrawn device, expansion device, cutting device, machine frame device, drive device, support roll device, paper pressing device, paper pushing device, paper removal device, arc device, paper transmitting device,electric, pneumatic and hydzaulic control systems and so on.

    Feature

    It has modular and compact structure.

    Reeling, unreeling and traction adopt variable frequency drive technology.

    Applicable for middle/high speed paper machines.

    Dual bowing rolls to insure that the paper to maintain stable tension and straightness after cutting.

    Advanced slitting design which equipped with knife positioning system.

    Operating speed range is between 1,000-2,500m/min.

    Factory Tour

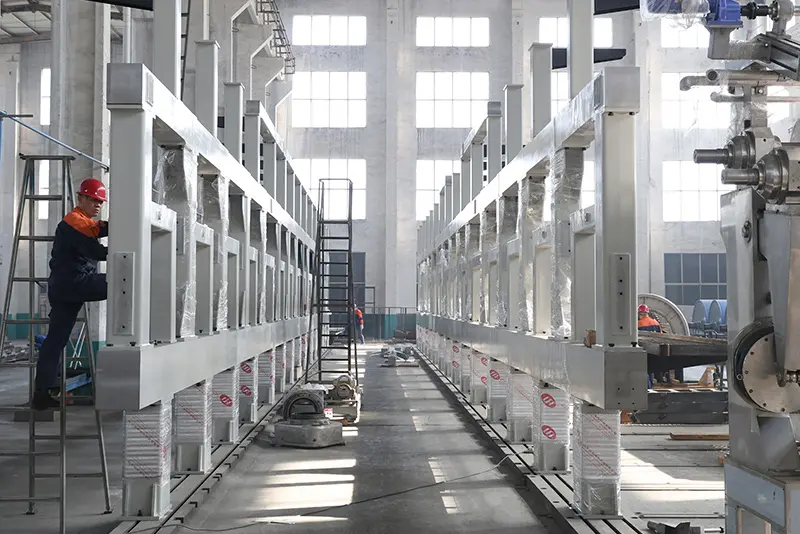

    Factory Tour (1)

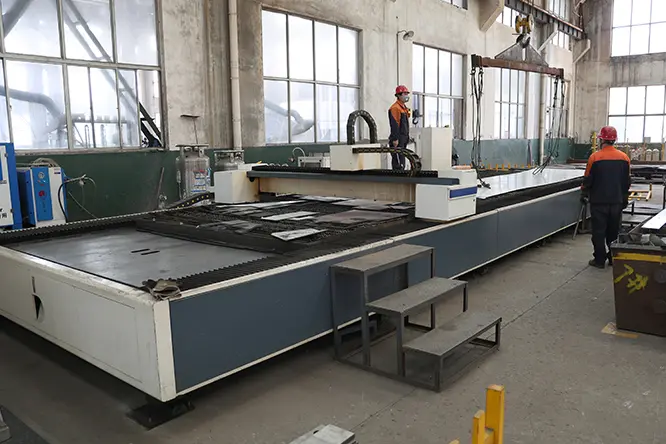

    Factory Tour (2)

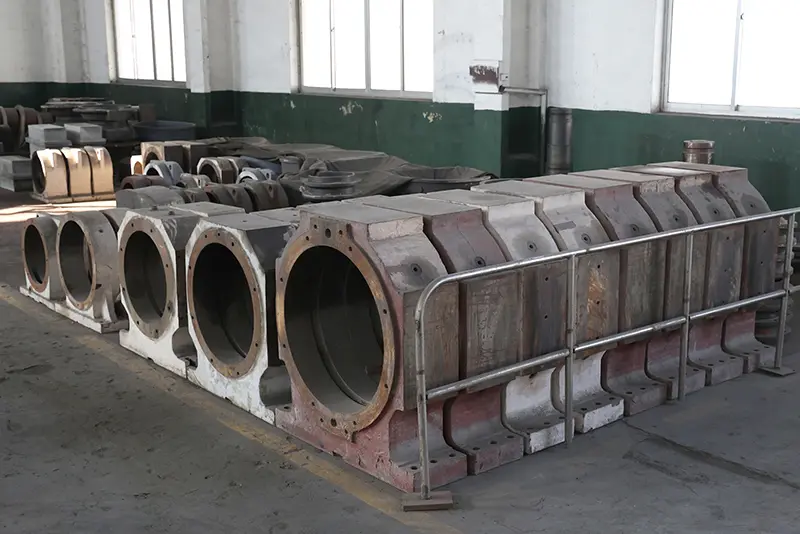

    Factory Tour (3)

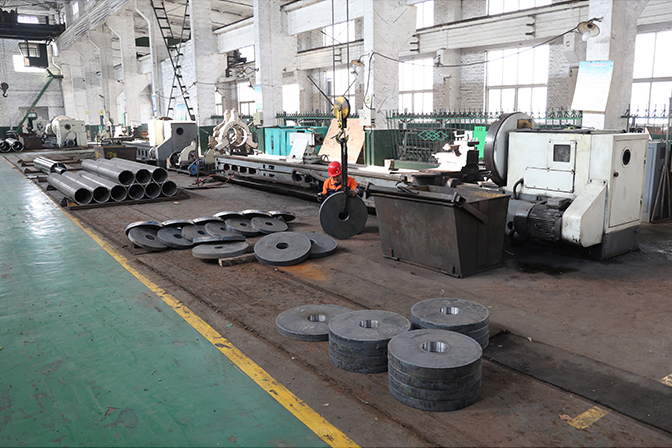

    Factory Tour (4)

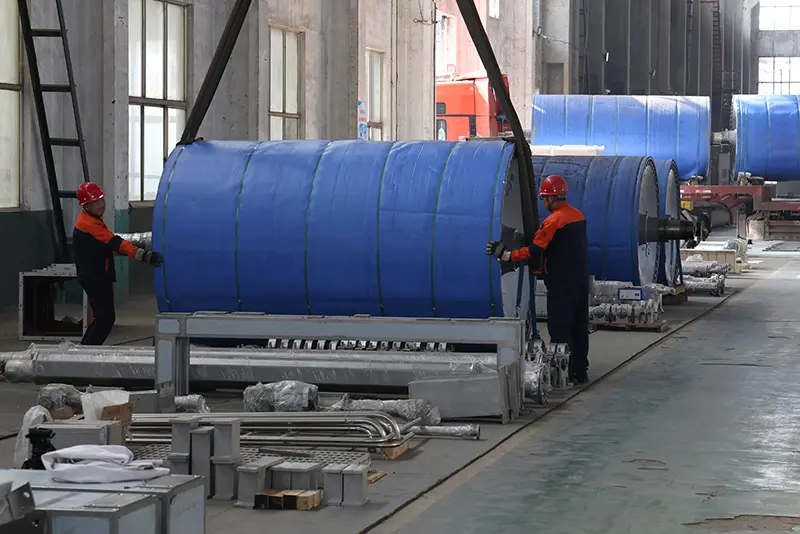

    Factory Tour (5)

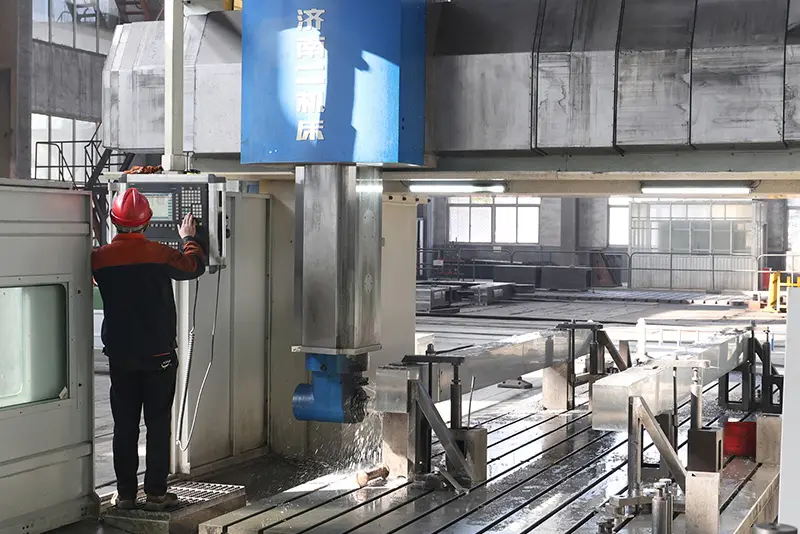

    Factory Tour (6)

    FAQ

    • Q: Are you a factory or a trading company?

      Shandong Haitian Paper Machinery Co.,Ltd. is a professional factory of culture paper machine, cardboard paper machine, kraft paper machine and specific paper machine.
    • Q: How is the quality of  your equipment?

    • Q: What kind of paper machine your factory produce?

    • Q: What's your quality guarantee?

    • Q: What's benefit will you bring?
