Component

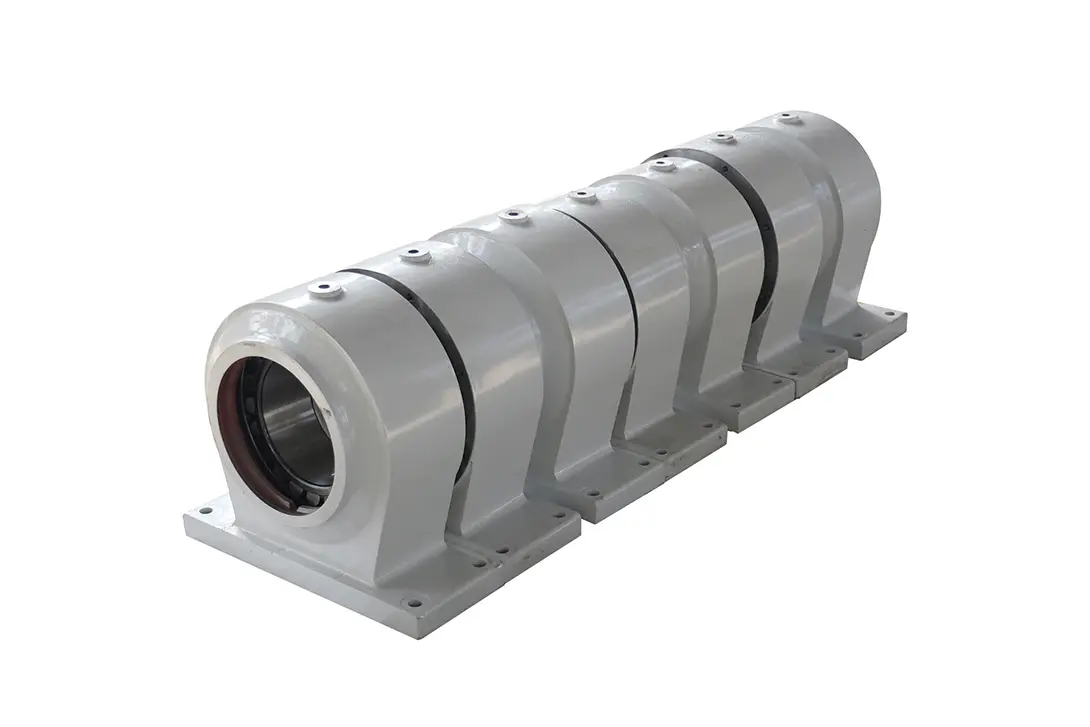

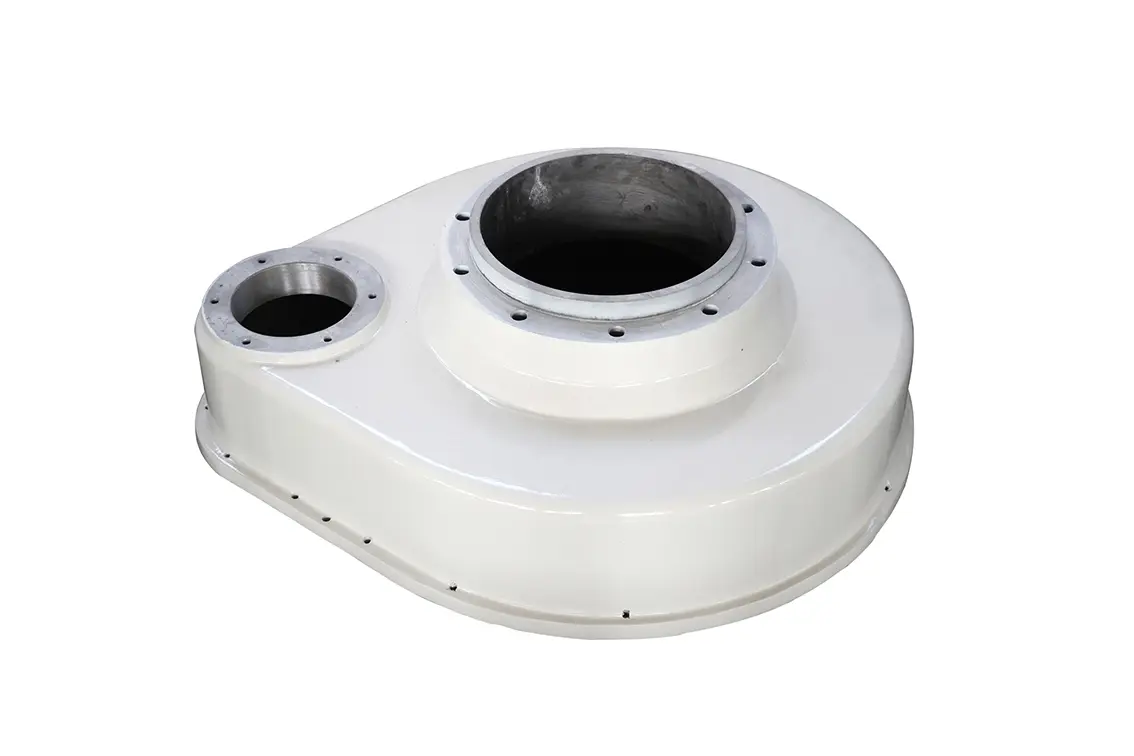

The main components of a drying cylinder include: roller shell, turbulence bars, siphon tubes, end covers, manhole covers, bearings, shaft heads, steam joints, etc.
01

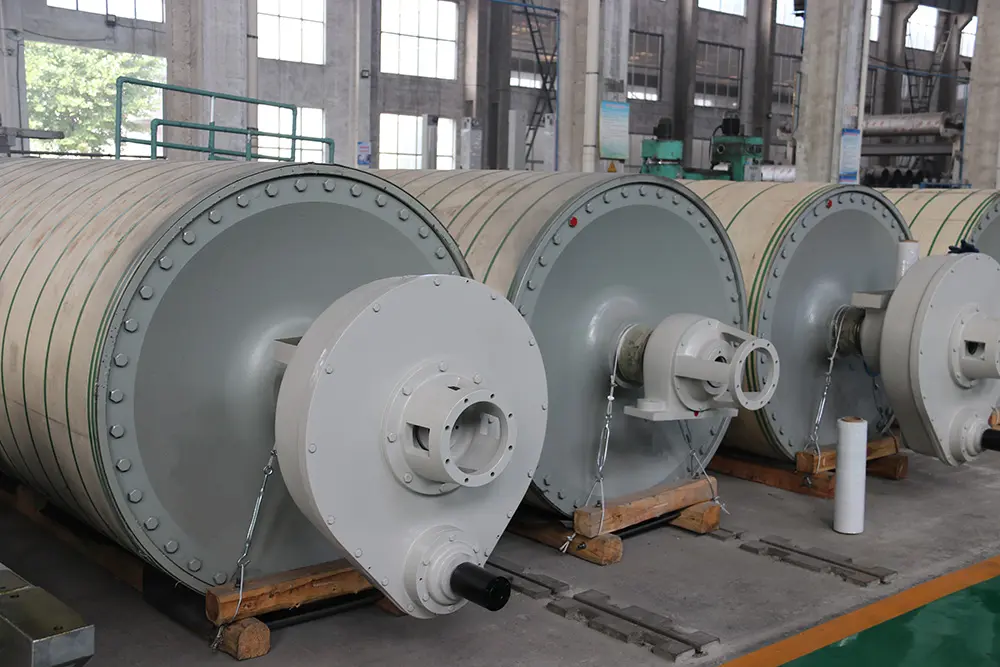

Cast Iron Dryer Cylinder for Paper Making Machine
description1
Technical Parameters
diameter |
Material |
Design Pressure MPa |
Hardness HB |
Face Length mm |
Working Speed m/min |
Roughness(Ra) |
Φ1500 |
HT250-HT350 |
0.3-1.1 |
190-240 |
1450-10000 |
500-1200 |
0.1-0.4 |
Φ1800 |
HT250-HT350 |
0.3-1.1 |
190-240 |
1450-10000 |
500-1200 |
0.1-0.4 |
Φ2000 |
HT250-HT350 |
0.3-1.1 |
190-240 |
1450-8000 |
500-1200 |
0.1-0.4 |
Φ2500 |
HT250-HT350 |
0.3-1.1 |
220-260 |
1450-8000 |
500-1200 |
0.1-0.4 |
Φ3000 |
HT350 |
0.3-1.1 |
230-260 |
1450-8000 |
500-1200 |
0.1-0.4 |
Φ3660 |
HT350 |
0.3-1.1 |
230-260 |
1450-8000 |
500-1500 |
0.1-0.4 |
Φ3800 |
HT350 |
0.3-1.1 |
230-260 |
1450-8000 |
500-1500 |
0.1-0.4 |
Function

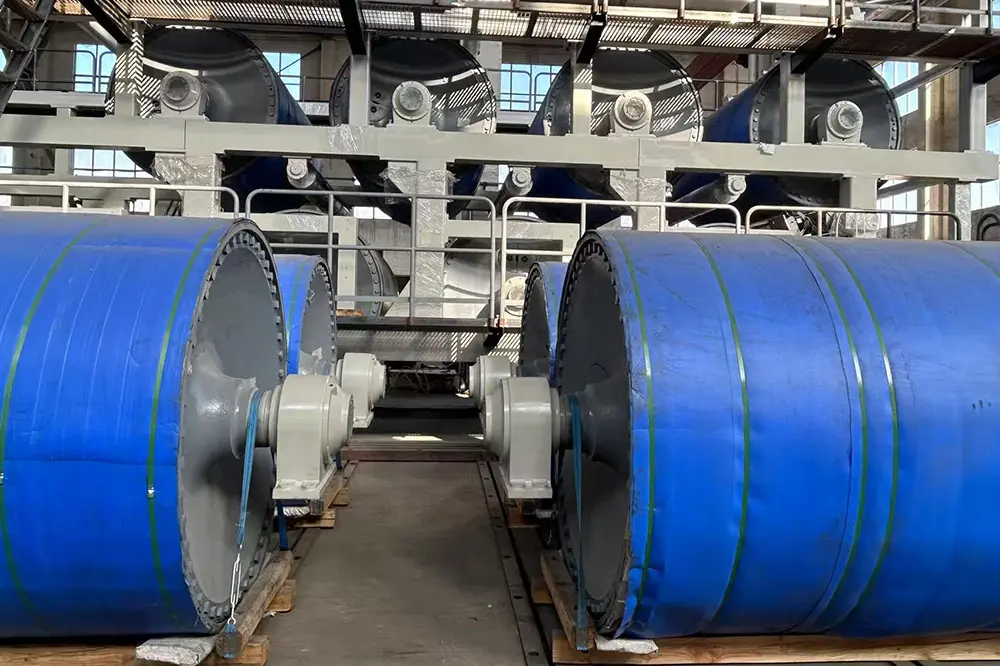

The number of cast iron drying cylinders accounted for about 2/3 of the total number of pressure vessels in the paper industry. manufacturing cylinder materials are generally HT200, HT250. In the manufacturing quality requirements are not allowed to have penetration and large sand holes, in order to increase the smoothness of the paper surface, the requirements of the drying cylinder outside the surface of the polished and the inner surface of the turning, so that the entire drying cylinder wall to maintain the same thickness to ensure that the cylinder's safe, balanced and even heat transfer in all places. The role of the drying cylinder is used to dry the moisture in the paper, decorating the paper surface.

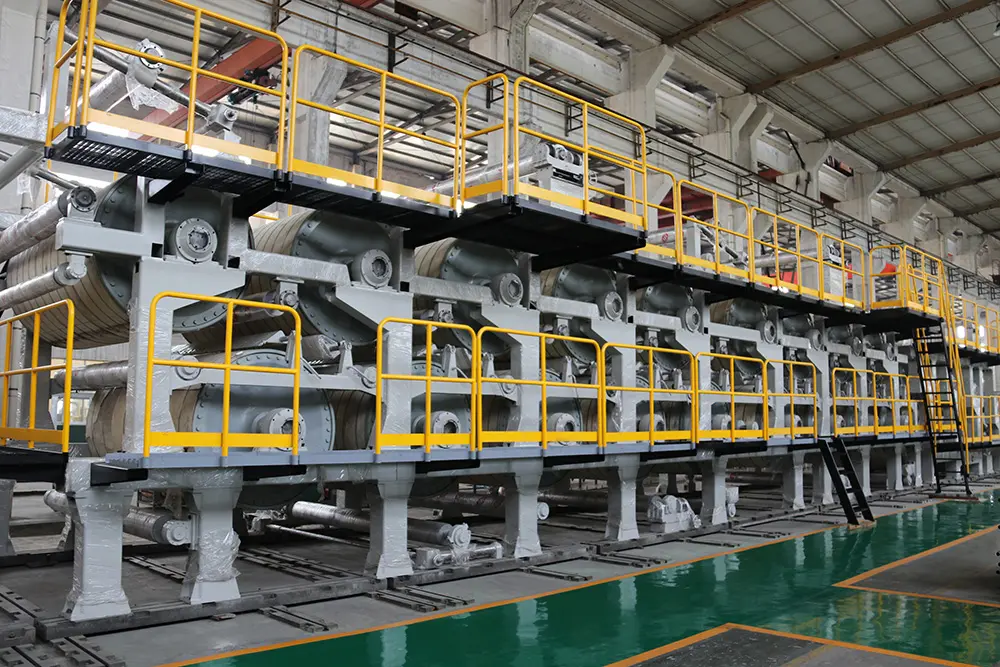

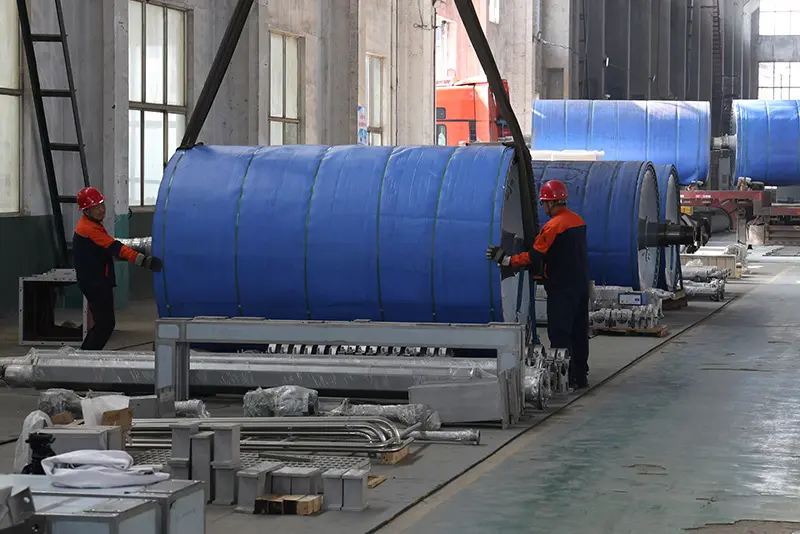

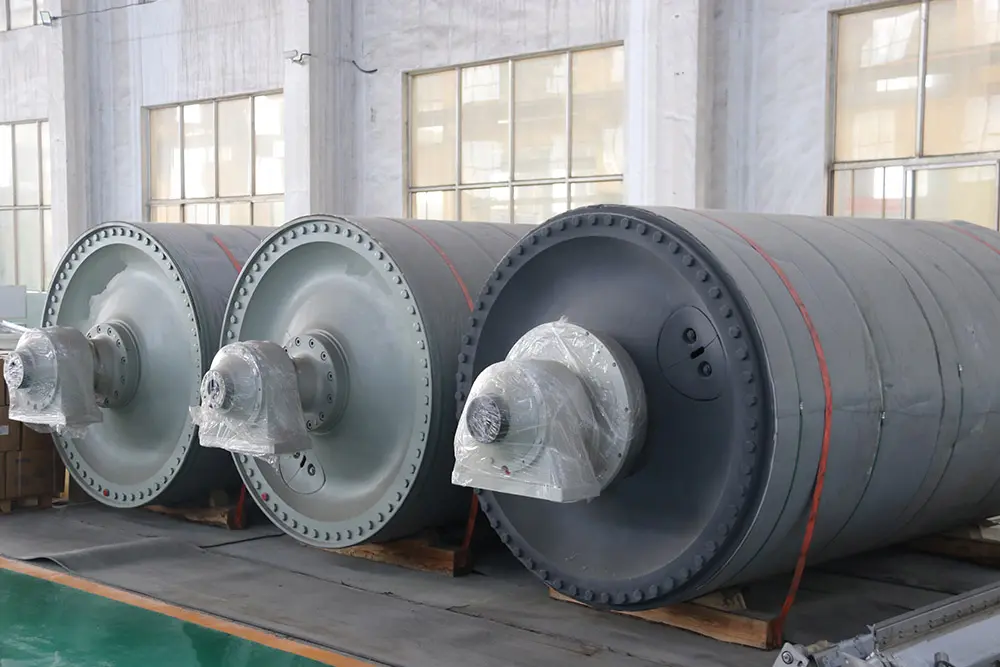

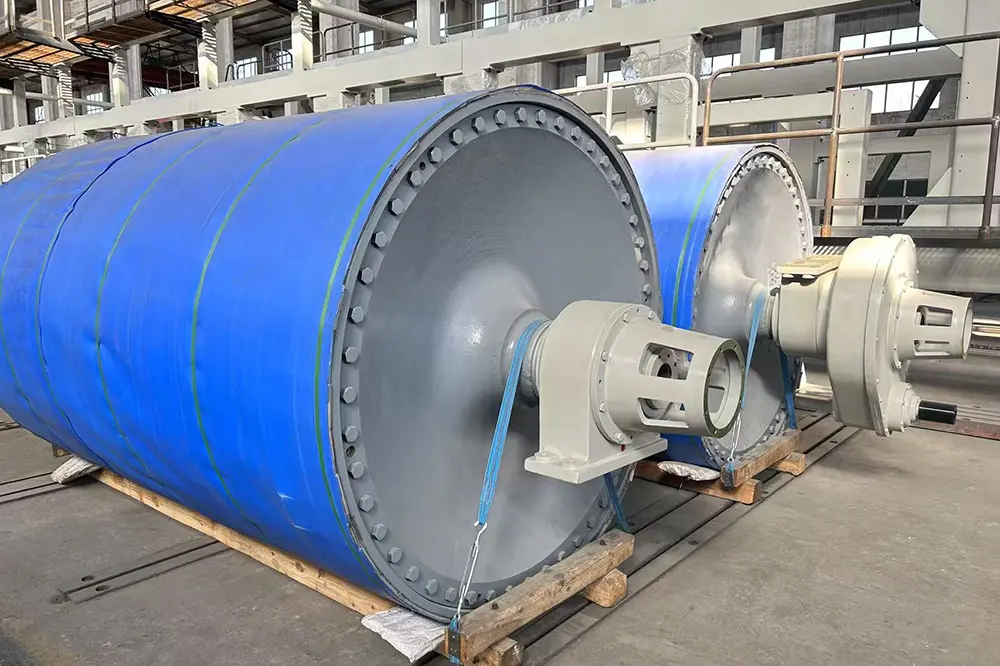

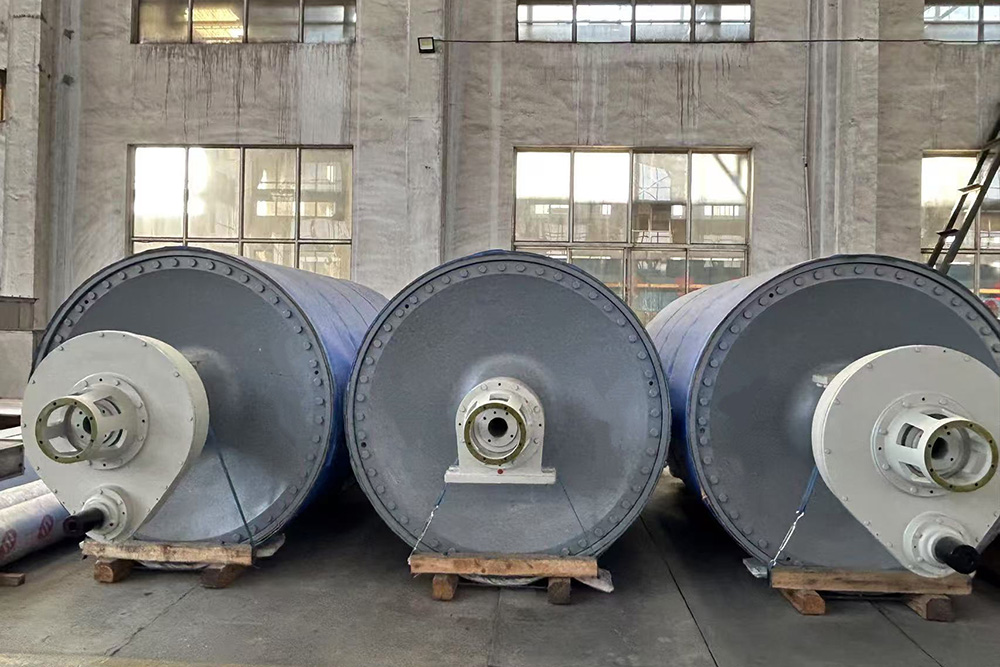

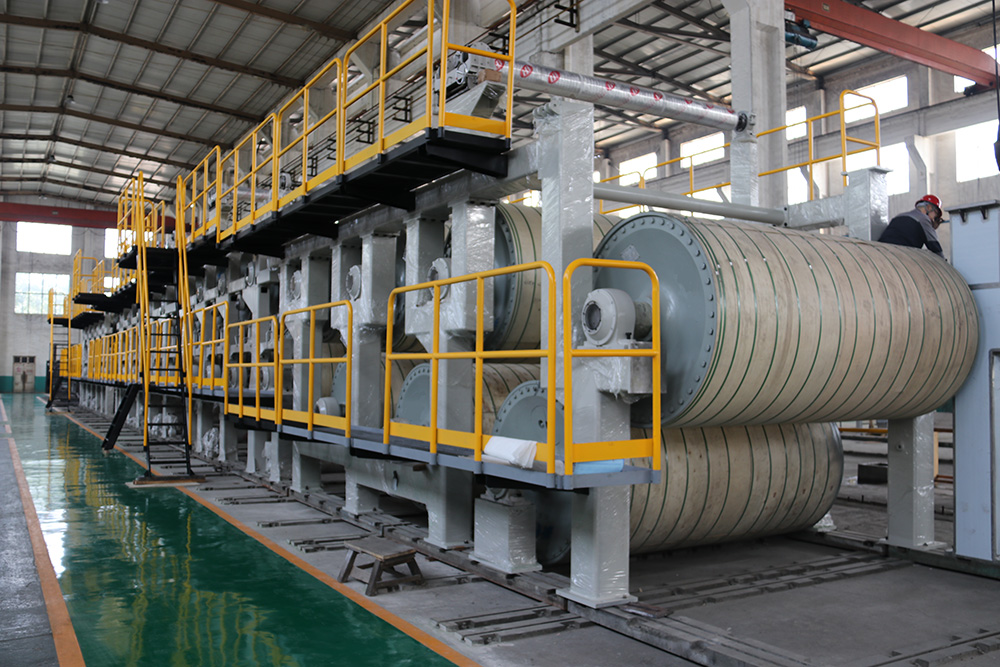

Detailed Photos
